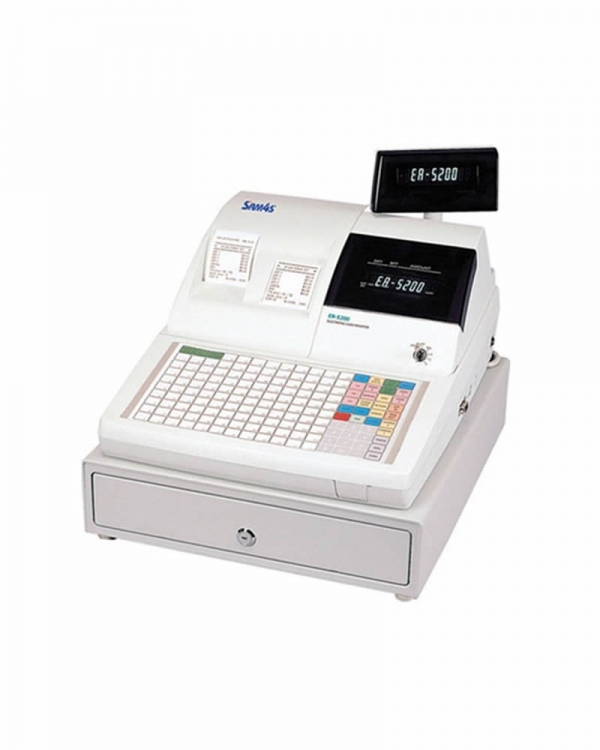

ER-5200

Sam4s ER-5200

– Electronic Cash Register

(For more product information and pricing, please contact us.)

Categories: ,

Description

The ER-5200 is a solution for a wide range of hospitality environments. It has a large numeric display and dual drop-in paper loading thermal printer. It is well suited for the small to medium restaurants and various retail operations.

Features

  • High featured 2 Station Cash Register
  • High Speed (13.3 LPS) 2 Station Direct Thermal Printer
  • Drop in Paper loading
  • 2 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output.
  • Up to 15000 PLU’s
  • Table Tracking for up to 500 Tables
  • Compressed print on the Journal Roll
  • Graphic Logo Print

Specifications

Printing Method 2 Station Direct Thermal Type
Printing Speed (Max.) up to 13.3 LPS
Paper Width 57.5 ± 0.5mm 69.5 ± 0.5mm 76 ± 0.5mm
Paper Roll Diameter Max Ø 83.0mm
Paper Supply Method Easy Paper Loading, Drop in and Print
Keyboard 160 Key Flat Keyboard
Display
  • Operator : 10 Digit VFD
  • Customer : 10 Digit VFD
Memory
  • ROM : 8 Mbits Flash ROM
  • RAM : 2 Mbits standard, 10 Mbits Optional
Memory Protection 60 Days
Interface 2 x RS232
Drawer 4B/8C
Memory Configuration
(“Max.” depends on Memory Sharing choices)
  • up to 15000 PLU’s
  • Max. 99 Clerks
  • Max. 99 Groups
  • Max. 500 Checks (Accounts)
  • Max. 100 Lines Record Per Account
  • Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
  • Max. 2 Price Levels
  • Max. 99 Mix & Match
OS Functions
  • 32 Character per Line Logo Description
  • (6 Lines Heading + 6 Lines Footing)
  • 18 Character Description
  • 15 Digit PLU Number
  • 5 Modifier Levels
  • 10 Macro keys (Manager Control Option – New)
  • 10 Tender Keys
  • Charge Posting Accounts
  • Max. 4 Currency Conversion
  • Inventory Item
  • Condiment Item
  • Table Management or Clerk Interrupt
  • Training Mode
  • 6 Digit Clerk Password
  • Graphic Logo on the Receipt Heading and Footing
  • Max. 100 Line Record per Transaction
Software Utilities Programming Utility Software, ASCII converter for PC comm’s
Weight 15.4 Kg
External Dimensions (W x D x H) 400 x 455 x 305 mm
EMC/Safety Standards CE, FCC, UL, TUV, GS
Power Supply AC 230V± 10%
